Casement

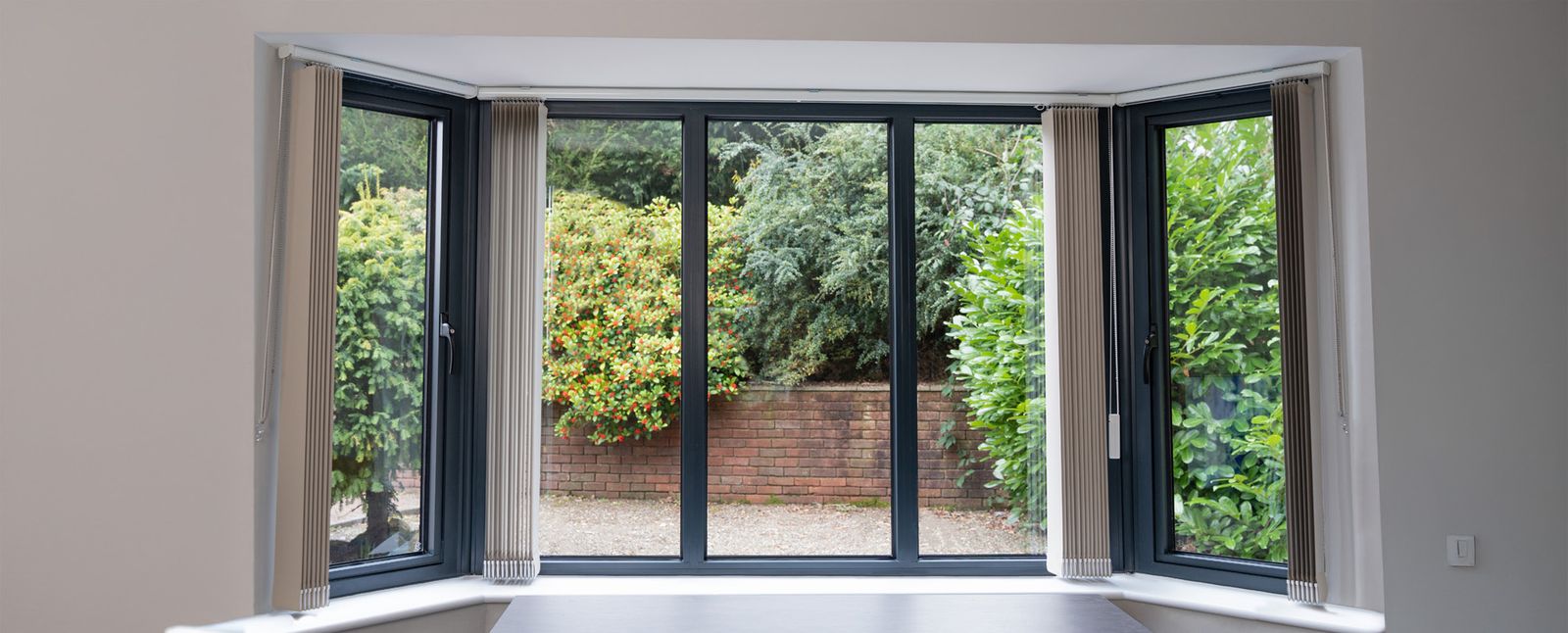

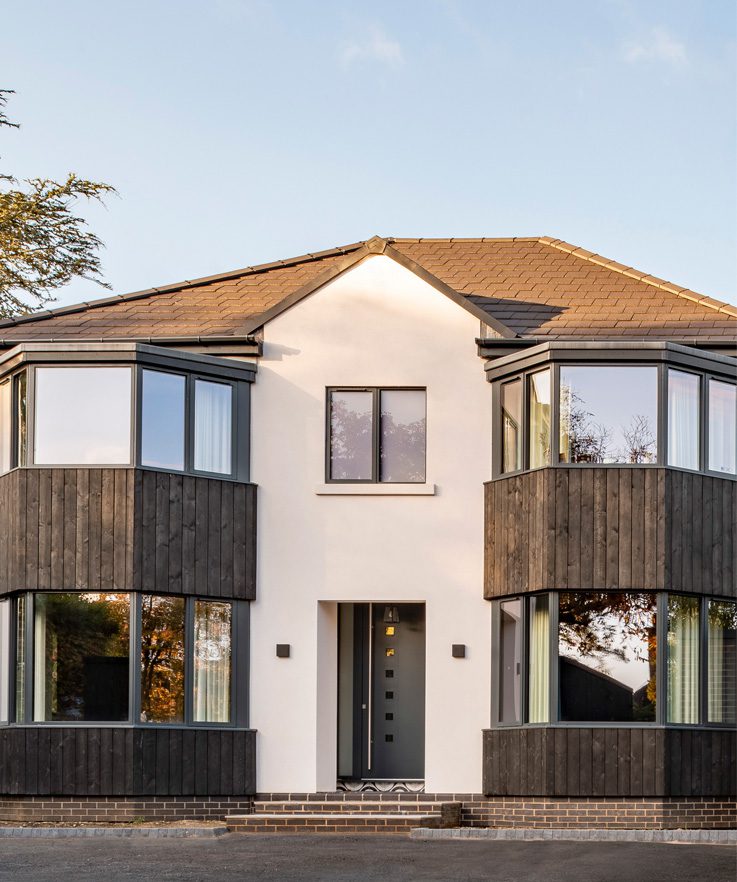

Thermally broken window allowing outward opening both as casement and projecting (British-style). This solution, with a 32 mm thermal break and a thermal transmittance value Uw from 0.9 W/m²K, is certified to PAS 24 and is especially suited to the UK market.

Thermal transmittance

Uw ≥ 0.9 (W/m²K)

Acoustic insulation

Rw up to 45 dB

Air permeability

Class 4

Watertightness

Class E1200

PAS 24 security test

Pass

Wind resistance

Class CE2400

GET A QOUTE



Download Brochure



Download technical drawing PDF



Download technical drawing DWX

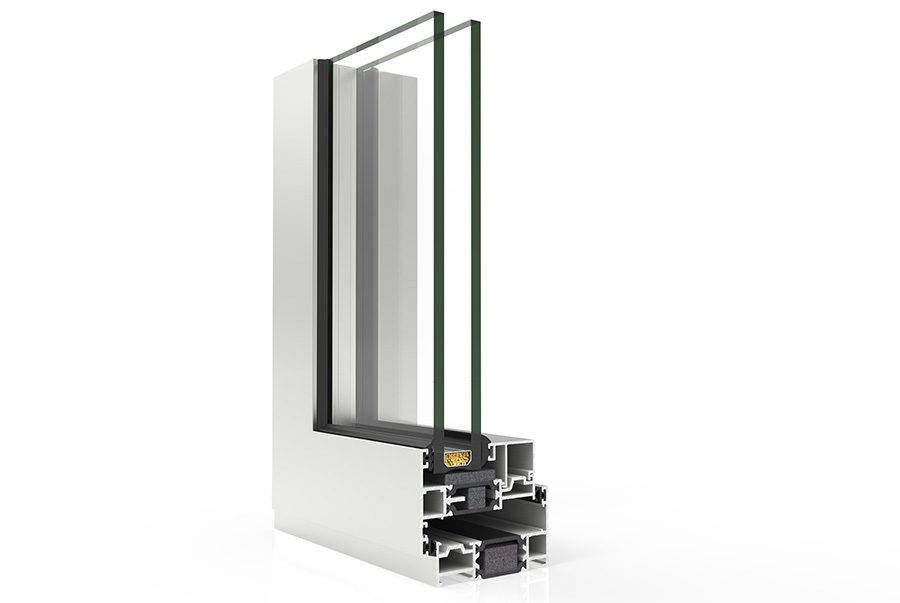

Sections
Frame 70 mm, Sash 70 mm

Polyamide bar length
32 mm

Profile thickness
Window 1.6 mm

‍Glazing
Max. 44 mm, Min. 23 mm

Max. sash dimensions
Reduced sash (Casement):
Width (L) 950 mm, Height (H) 1300 mm
Reduced sash (Projecting):Width (L) 1200 mm, Height (H) 1300 mm
Heavy duty sash (Casement):Width (L) 750 mm, Height (H) 1750 mm
Heavy duty sash (Projecting):Width (L) 1800 mm, Height (H) 1800 mm

Max. sash weight
Reduced Casement: 35 kg
Reduced Projecting: 50 kg
HD Casement: 42 kg
HD Projecting: 100 kg
Consult maximum weight and dimensions depending on configuration
